Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use
Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Großes Bild :  Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Produktdetails:
Herkunftsort: China
Markenname: KUOMAN
Zertifizierung: CE, UL
Modellnummer: KMC50DP2
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: based on the specification demands
Verpackung Informationen: Standard-Exportverpackung
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 10 PCs/Monat
Kontakt

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Beschreibung
Modulabmessungen: 1722x1134x30mm Zertifizierungen: IEC 61215, IEC 61730, UL 1703, CE
Frontglas: 3,2 mm gehärtet Betriebstemperatur: -40°C bis 85°C
Ausgangsfrequenz: 60 Hz/50 Hz Kurzschlussstrom: 13,88-14,22A
Anschlussdose: 25A, IP68 Garantie: 10 Jahre Produktgarantie, 25 Jahre Leistungsgarantie
Oberflächenbehandlung: Gegenreflektierende Beschichtung Effizienz des Panels: 22%
Seriensicherungsbewertung: 15A Anwendung: Wohngebäude, gewerbliche, industrielle
Aktuell: 12,5 Ampere Zellzahl: 144 monokristallin
Temperaturbereich: -40°C~+85°C
Hervorheben:

outdoor industrial energy storage cabinet

,

air cooled commercial energy storage

,

10ms backup switch energy storage

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use

Low Maintenance Outdoor Industrial Energy Storage Air Cooled Cabinet 10ms Backup Switch For Commercial Use 0
Product Overview

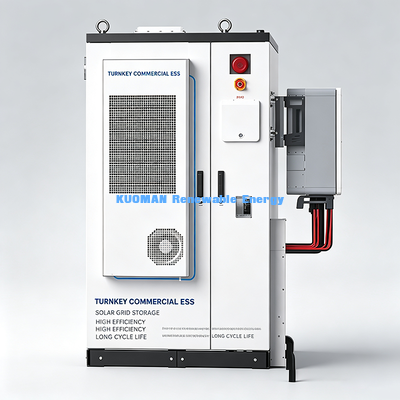

Our KMC50DP2 commercial energy storage cabinet integrates a 50kW hybrid solar inverter and BC107DE2 107.52kWh LFP battery pack into a single outdoor unit, a complete all-in-one solar storage solution designed for commercial & industrial users. Built with 280Ah large-capacity lithium iron phosphate cells, this compact ESS supports both DC-coupled and AC-coupled PV systems, delivering seamless on/off-grid power switching within 10ms to secure critical backup loads. Equipped with independent air conditioner cooling, full fire safety mechanisms and cloud 24/7 monitoring, it perfectly solves high electricity cost, power outage and peak demand challenges for businesses.

Key Technical Parameters
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.

Größe und Tag:

ESS-Batterieanlage,

ESS-Batteriespeicher,

Energiespeicher-Systembatterie
