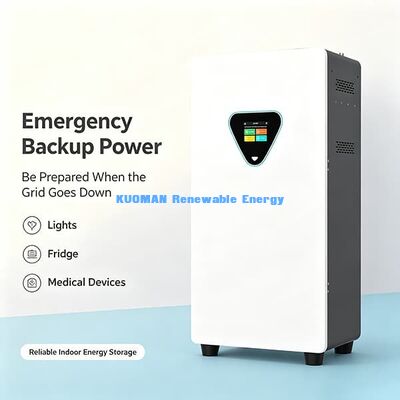

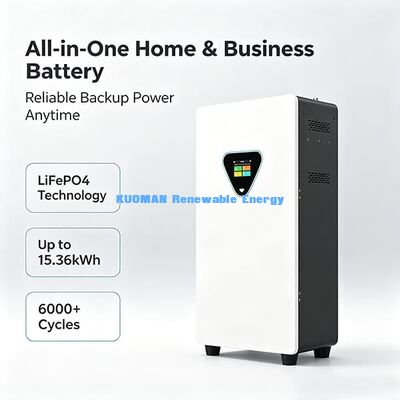

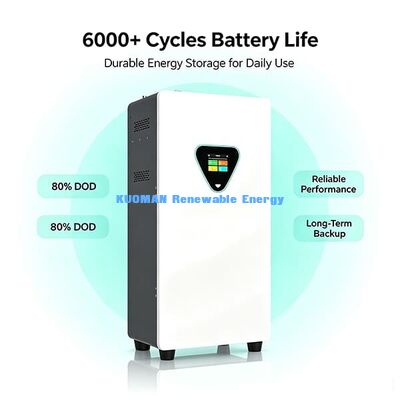

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Ich bin online Chat Jetzt

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Großes Bild :  Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Produktdetails:
Herkunftsort: China
Markenname: KUoman
Zertifizierung: CE UL
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: based on specification
Verpackung Informationen: Internationale Standardverpackung
Lieferzeit: Ungefähr 10 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 100 Stück/Monat

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery

Beschreibung
Gesamtenergie-Speicher: 2560Wh / 5248Wh / 7680Wh | 5120 Wh / 10496 Wh / 15360 Wh Maximaler Ladestrom: 100A (100Ah); 200A (205Ah/300Ah)
Zyklusleben: 6000–8000 Zyklen bei 80 % DOD Entlade-Abschaltspannung: 21,6V | 43,2V
Bildschirmtyp: Dreieckiges Touch-LCD Maximaler Entladestrom: 100A (100Ah); 200A (205Ah/300Ah)
Betriebstemperatur: Entladung: -20℃ ~ 60℃; Ladung: 0℃ ~ 55℃ Schwebende Schuld-Spannung: 28,8V | 57,6 V
Spitzenentladung: Dauerleistung 200 A (10 kW), Spitzenleistung 400 A (20 kW) Verfügbare Kapazität: 100Ah / 205Ah / 300Ah
Nennspannung: 25,6V | 51,2V Arbeitsspannungsbereich: 21,6V-29,2V | 43,2V-58,4V
Hervorheben:

Multi-Layer BMS lithium battery

,

Household storage battery with overcharge protection

,

Indoor lithium battery temp safe

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Product Overview

Mobile LiFePO4 Home & Commercial Energy Storage Battery, 25.6V / 51.2V Series (100Ah/205Ah/300Ah). Our vertical all-in-one lithium iron phosphate energy storage battery is designed for residential backup, solar off-grid, and small commercial power storage.

Multi-Layer Full Protection BMS Lithium Battery Overcharge Short Circuit Temp Safe Indoor Household Storage Battery
Product Specifications
Model Spec 25.6V Series 51.2V Series
Available Capacity 100Ah / 205Ah / 300Ah 100Ah / 205Ah / 300Ah
Total Energy Storage 2560Wh / 5248Wh / 7680Wh 5120Wh / 10496Wh / 15360Wh
Rated Voltage 25.6V 51.2V
Working Voltage Range 21.6V-29.2V 43.2V-58.4V
Max Charge / Discharge Current 100A(100Ah); 200A(205Ah/300Ah) 100A(100Ah); 200A(205Ah/300Ah)
Discharge Cut-off Voltage 21.6V 43.2V
Floating Charge Voltage 28.8V 57.6V
Cycle Life 6000-8000 Cycles @80% DOD, retain 80% capacity after long-term use
Operating Temperature Discharge: -20℃ ~ 60℃; Charge: 0℃ ~ 55℃
Peak Discharge Support Continuous 200A (10kW), Peak 400A (20kW) for heavy appliances
Screen & Monitor Triangle touch LCD, real-time display voltage, current, SOC, single cell status
Key Features
  • Ultra-Safe LiFePO4 Battery Chemistry: Zero thermal runaway risk, no toxic gas emission, fully safe for indoor household & commercial installation. No fire hazard compared to ternary lithium batteries.
  • Intelligent 6-Layer Full BMS Protection: Built-in advanced BMS with overcharge, over-discharge, over-current, short-circuit, over-temperature & cell imbalance protection; real-time single cell monitoring + automatic active cell balancing to extend battery lifespan.
  • Long Service Cycle Life: Up to 8000 deep cycles at 80% DOD, daily use supports over 15 years stable service, far longer than lead-acid batteries.
  • High Power Output Capacity: Continuous 200A discharge (10kW), peak 400A (20kW), fully powers heavy loads: air conditioners, water pumps, refrigerators, medical equipment.
  • Wide Compatibility: Works seamlessly with solar panels (MPPT inverter recommended), diesel generators, and municipal grid power; supports on-grid / off-grid / hybrid solar energy systems.
  • Scalable & Mobile Vertical Cabinet Design: Single unit independent use, stack up multiple units to expand capacity up to 30kWh; vertical wall-mounted floor standing design with touch control screen, compact footprint, easy moving & indoor placement.
  • Wide Temperature Adaptability: Stable discharge performance from -20℃ to 60℃, charge normally between 0℃-55℃, suitable for cold northern areas & hot tropical regions.
Energy storage battery application scenarios and installation
Application Scenarios
  • Home Blackout Emergency Backup
  • Residential Solar Self-Consumption
  • Grid Time-of-Use (TOU) Peak Shaving
  • Off-Grid Cabins, Tiny Homes & Remote Villas
  • Small Business & Commercial Power Storage
  • Continuous Power Supply for Medical Equipment
  • Solar & Generator Hybrid Off-Grid Power Systems
